——————————————————————————————————— Hairui portable gantry CNC laser cutting machine are known worldwide for their excellent cutting quality.

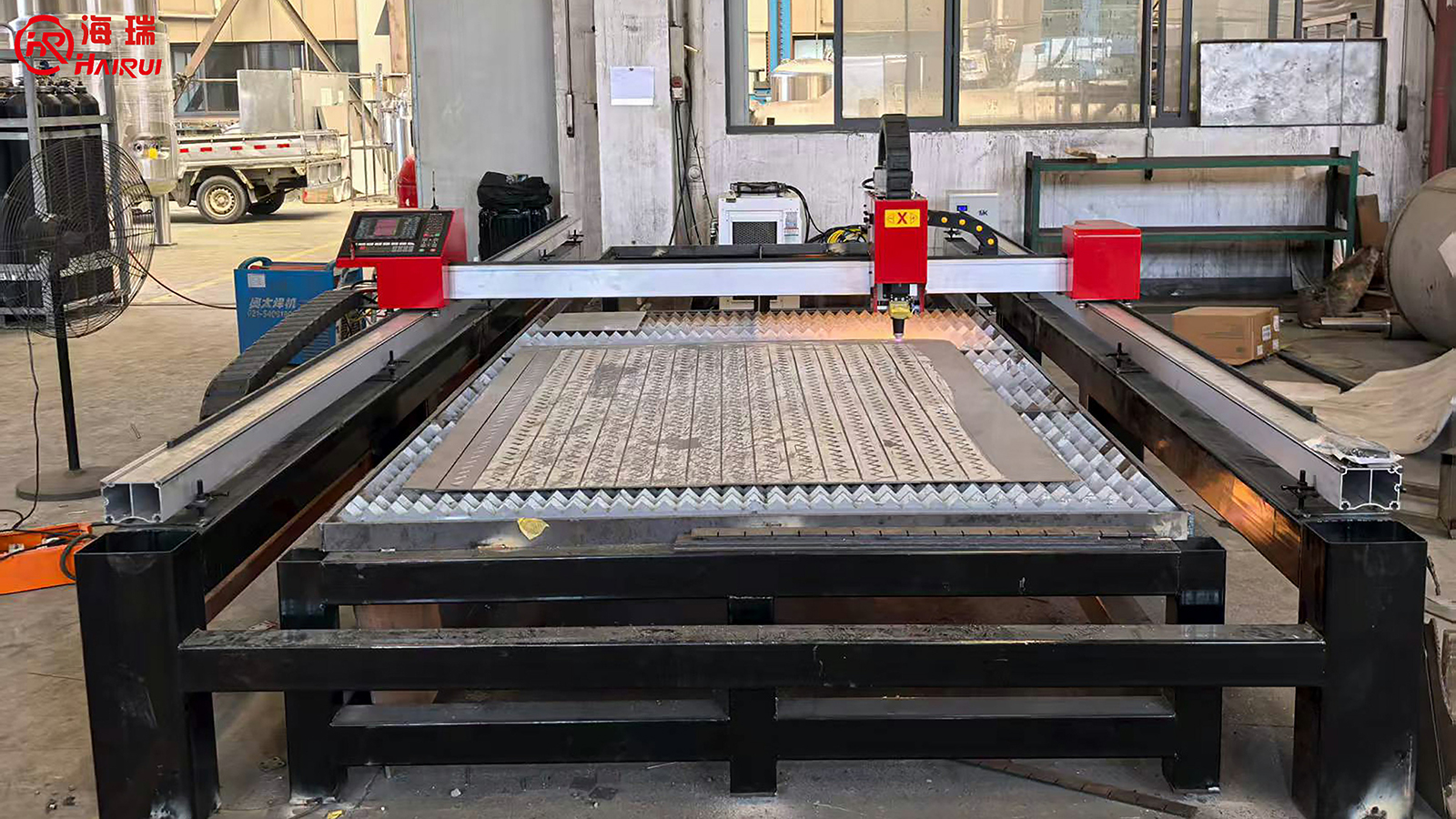

HRPGFC-portable gantry CNC laser cutting machine is controlled by the CNC system, with the movement of the machine tool, the laser cutting head installed on the machine tool will cut the plate. Different brand of laser and laser cutting head can be selected according to actual needs, it is a laser cutting equipment with high cutting precision, high cutting efficiency and high material utilization rate.
The equipment adopts guide rail, machine tool and worktable split structure, when the equipment is installed, the machine tool is directly placed on the guide rail, the worktable made by the customer, it is a high-precision and high-efficiency automatic cutting equipment.
This product can be customized by choosing different guide rail center distance and guide rail length according to actual needs.
|
Number |
Item |
Detail |
|
01 |
Guide Rail Center Distance |
2500-4000mm |
|
02 |
Effective Cutting Width |
Guide Rail Center Distance-500mm |
|
03 |
Guide Rail Length |
3500-12500mm |
|
04 |
Effective Cutting Length |
Guide Rail Length-5000mm |
|
05 |
Quickly Positioning Speed |
6000mm/min |
|
06 |
Longitudinal Drive Mode |
Stepper Bilateral Drive |
|
07 |
Laser Power |
1000-6000W |
|
08 |
IP Grade |
IP54 |
|
09 |
Input Power Supply |
3×380/400/415V, 50/60Hz |
|
10 |
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
According to the actual needs of customers, provide corresponding technical guidance and equipment information, answer various questions raised by customers, design plasma processing solutions for customers from technical feasibility, and provide related equipment for customers to visit, sample, test machine.
Sales Service
Investigate the customer’s machine use site, assist the user in planning the layout of the water, electricity, gas and other equipment in the production site according to the actual situation on site, provide the customer with a complete set of equipment operation instructions, and provide training service for the user’s equipment operator. Before delivery, train the user's equipment operators on basic equipment theory, safety protection and equipment maintenance.
After Sales Service
In the user’s factory, the user’s equipment operator is trained in actual processing operations, equipment daily maintenance and safe operation to ensure that the user can familiarize with the equipment operation rules and methods as soon as possible, and can independently use the equipment for production. After the complete set of equipment is installed and debugged at the user’s site, the warranty is free for one year from the date of acceptance by the user. Our company will also arrange technical personnel to conduct technical visits from time to time, communicate with customers on routine maintenance and inspection of equipment, and answer various questions raised by users.
Service Commitment
Service response time within 2 hours, the professional after-sales service team provides 24-hour technical support by email, video, telephone and other communication methods to provide customers with timely, comprehensive, convenient and efficient technical services.
-
