Strict quality control of parts & finished products
——————————————————————————————————— Hairui welding positioner are known worldwide for their excellent quality.
Tilting type for standard, various other types for choose: double seat type, double rotary type, head and tail type, lifting type, hydraulic type, L type and so on.
Provide suitable solution according to the requirements of the workpiece to be welded.
HRHB-welding positioner mainly makes the workpiece at the best welding angle through the overturning of the worktable, and then drives the workpiece to rotate through the rotation of the worktable for welding, the rotating speed of the worktable can be adjusted stepless by frequency conversion to meet the welding needs of different workpieces. The electrical control system has three modes for choose: cordless remote controller, wired control box and foot switch. The equipment has the advantages of advanced structure, stable and reliable operation, high degree of automation, convenient operation and so on.

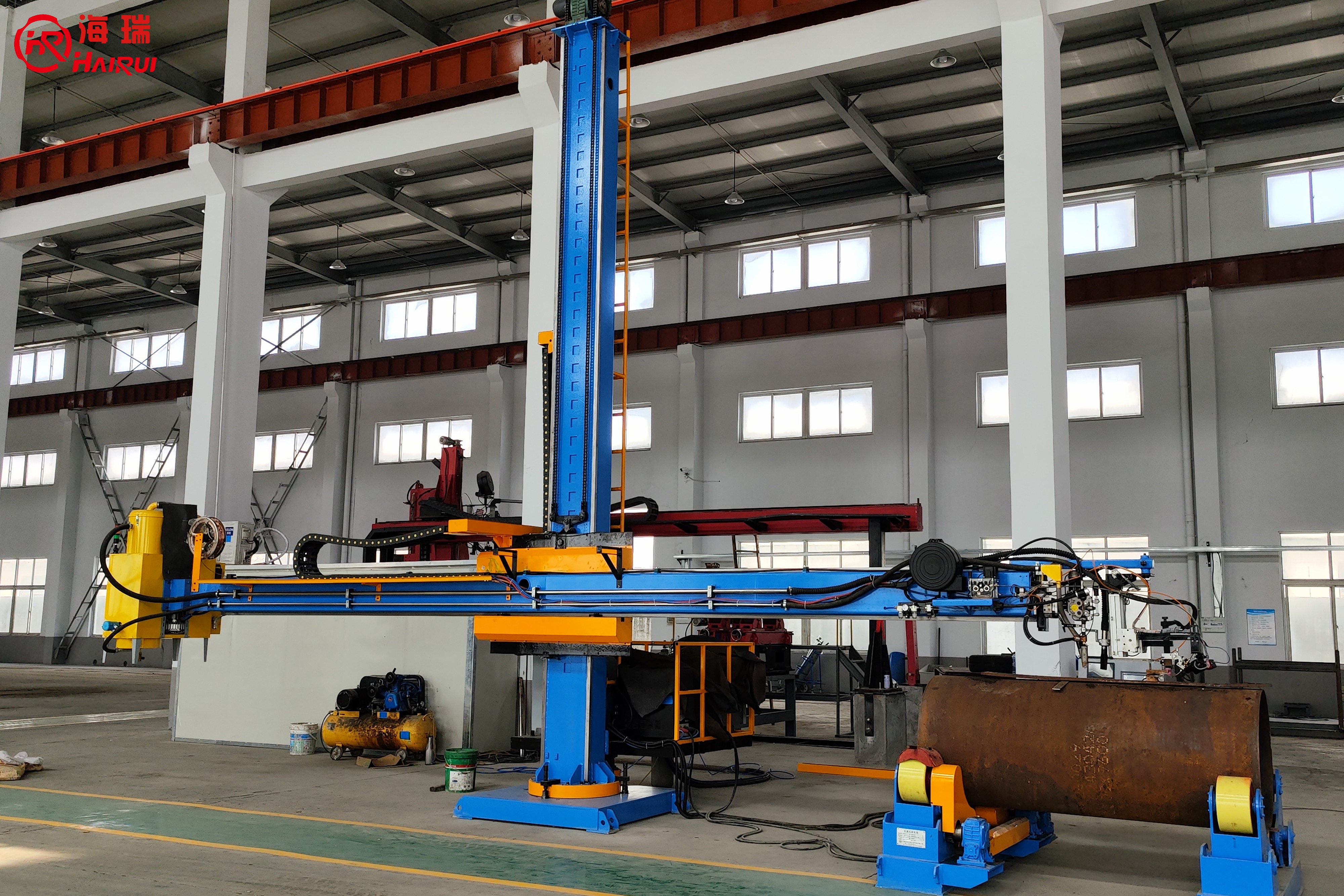

There are many types of welding positioners, mainly including tilting type, double seat type, double rotary type, head and tail type, lifting type, hydraulic type, L type and so on, which can be combined with welding column & boom manipulator or welding robot to form automatic welding equipment.
If the workpiece has large eccentric weight or the workpiece is long, lead to large eccentricity distance or barycenter distance, slightly larger model should be selected, and our company will provide suitable solution according to the shape, size, weight and welding process requirements of the workpiece to be welded.
|
Model |
HRHB-01 |
HRHB-03 |
HRHB-06 |
HRHB-12 |
HRHB-30 |
HRHB-50 |
HRHB-100 |
HRHB-150 |
HRHB-200 |
HRHB-300 |
HRHB-500 |
|
Max Load (kg) |
100 |
300 |
600 |
1200 |
3000 |
5000 |
10000 |
15000 |
20000 |
30000 |
50000 |
|
Worktable Diameter (mm) |
400 |
600 |
1000 |
1200 |
1400 |
1500 |
2000 |
2200 |
2500 |
3000 |
4000 |
|
Overturning Angle (°) |
0-120 |
||||||||||
|
Overturning Speed (rpm) |
1 |
0.9 |
0.8 |
0.5 |
0.3 |
0.15 |
0.15 |
0.15 |
0.15 |
0.1 |
0.1 |
|
Rotating Speed (rpm) |
0.3-3 |
0.2-2 |
0.1-1 |
0.1-1 |
0.08-0.8 |
0.07-0.7 |
0.06-0.6 |
0.05-0.5 |
0.05-0.5 |
0.04-0.4 |
0.04-0.4 |
|
Overturning Motor Power (kw) |
0.18 |
0.37 |
0.55 |
1.1 |
1.5 |
3 |
4 |
5.5 |
7.5 |
11 |
18.5 |
|
Rotating Motor Power (kw) |
0.18 |
0.37 |
0.55 |
0.75 |
1.5 |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
|
Max Eccentricity Distance (mm) |
50 |
150 |
150 |
200 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
|
Max Barycenter Distance (mm) |
100 |
200 |
250 |
250 |
300 |
300 |
400 |
400 |
400 |
500 |
600 |
|
Adjust Mode of Rotating Speed |
Inverter Control |
||||||||||
|
IP Grade |
IP54 |
||||||||||
|
Input Power Supply |
3×380/400/415V, 50/60Hz |
||||||||||
|
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
||||||||||
According to the actual needs of customers, provide corresponding technical guidance and equipment information, answer various questions raised by customers, design laser processing solutions for customers from technical feasibility, and provide related equipment for customers to visit, sample, test machine.
Sales Service
Investigate the customer’s machine use site, assist the user in planning the layout of the water, electricity, gas and other equipment in the production site according to the actual situation on site, provide the customer with a complete set of equipment operation instructions, and provide training service for the user’s equipment operator. Before delivery, train the user's equipment operators on basic equipment theory, safety protection and equipment maintenance.
After Sales Service
In the user’s factory, the user’s equipment operator is trained in actual processing operations, equipment daily maintenance and safe operation to ensure that the user can familiarize with the equipment operation rules and methods as soon as possible, and can independently use the equipment for production. After the complete set of equipment is installed and debugged at the user’s site, the warranty is free for one year from the date of acceptance by the user. Our company will also arrange technical personnel to conduct technical visits from time to time, communicate with customers on routine maintenance and inspection of equipment, and answer various questions raised by users.
Service Commitment
Service response time within 2 hours, the professional after-sales service team provides 24-hour technical support by email, video, telephone and other communication methods to provide customers with timely, comprehensive, convenient and efficient technical services.
-
